  • ROLLER LACER 48", RL-48#03372/ - 100817096

SPARKS

ROLLER LACER 48", RL-48#03372/ - 100817096

PN:
100817096
CRN:
1149483
MPN:
1149483

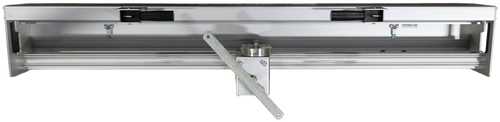

Storage Clip
Storage Clip
Roller Lacer MIMRER RL-84410 FLEXED
ROLLER LACER 48", RL-48#03372/ - 100817096
Roller Lacer® Clipper SERIAL NUMBER RL-84410 1854 Northridge Drive, NW Walker, MI 49544 USA www.flexco.com FLEXCO Operating Instructions: 1. Select proper size hook and insert into face strip. Insert lacer pin. Remove carding paper if it covers hook points. If carding paper does not cover hook points, remove after hooks have been installed. 2. Insert belt into lacer between hook points. Secure belt by closing belt clamps. 3. Open rollers by turning adjusting knob clockwise. Position lacer head over hooks and close rollers until rollers touch hooks. Move lacer head to either belt edge. Turn adjusting knob another 1-1/2 turns counterclockwise. 4. Using drive handles, move lacer head across belt width, embedding hooks. Close adjusting knob 1/2 tum for each pass, until hooks are properly installed: 1) 1/2 to 1/3 of the wire diameter is embedded into belt cover; 2) hook points break belt surface. 5. Remove lacer pin. Loosen belt clamps and remove belt.
To Secure Face Strip Loosen hex screw to rotate Retaining Latch for Face Strip removal and insertion. H
NOTE: This lacer requires a new, 3-Layer Face Strip. Previous 2-Layer Face Strips will not function properly in this lacer. Refer to below chart for ordering information: #36 Face Strip #1 Face Strip Microlacer 04019 FSMAN36-MICRO 04014 FSMAN1-MICRO RL-24 04020 FSMAN36-24 04015 FSMAN1-24 RL-36 04021 FSMAN36-36 04016 FSMAN1-36 RL-48 04022 FSMAN36-48 04017 FSMAN1-48 RL-60 04023 FSMAN36-60 04018 FSMAN1-60 #2-4 Face Strip #4-1/2-7 Face Strip Microlacer 04024 FSMAN2-MICRO 04029 FSMAN4-1/2-MICRO RL-24 04025 FSMAN2-24 04030 FSMAN4-1/2-24 RL-36 04026 FSMAN2-36 04031 FSMAN4-1/2-36 RL-48 04027 FSMAN2-48 04032 FSMAN4-1/2-48 RL-60 04028 FSMAN2-60 04033 FSMAN4-1/2-60
Storage Clip
Roller Lacer MIMRER RL-84410 FLEXED
ROLLER LACER 48", RL-48#03372/ - 100817096
Roller Lacer® Clipper SERIAL NUMBER RL-84410 1854 Northridge Drive, NW Walker, MI 49544 USA www.flexco.com FLEXCO Operating Instructions: 1. Select proper size hook and insert into face strip. Insert lacer pin. Remove carding paper if it covers hook points. If carding paper does not cover hook points, remove after hooks have been installed. 2. Insert belt into lacer between hook points. Secure belt by closing belt clamps. 3. Open rollers by turning adjusting knob clockwise. Position lacer head over hooks and close rollers until rollers touch hooks. Move lacer head to either belt edge. Turn adjusting knob another 1-1/2 turns counterclockwise. 4. Using drive handles, move lacer head across belt width, embedding hooks. Close adjusting knob 1/2 tum for each pass, until hooks are properly installed: 1) 1/2 to 1/3 of the wire diameter is embedded into belt cover; 2) hook points break belt surface. 5. Remove lacer pin. Loosen belt clamps and remove belt.
To Secure Face Strip Loosen hex screw to rotate Retaining Latch for Face Strip removal and insertion. H
NOTE: This lacer requires a new, 3-Layer Face Strip. Previous 2-Layer Face Strips will not function properly in this lacer. Refer to below chart for ordering information: #36 Face Strip #1 Face Strip Microlacer 04019 FSMAN36-MICRO 04014 FSMAN1-MICRO RL-24 04020 FSMAN36-24 04015 FSMAN1-24 RL-36 04021 FSMAN36-36 04016 FSMAN1-36 RL-48 04022 FSMAN36-48 04017 FSMAN1-48 RL-60 04023 FSMAN36-60 04018 FSMAN1-60 #2-4 Face Strip #4-1/2-7 Face Strip Microlacer 04024 FSMAN2-MICRO 04029 FSMAN4-1/2-MICRO RL-24 04025 FSMAN2-24 04030 FSMAN4-1/2-24 RL-36 04026 FSMAN2-36 04031 FSMAN4-1/2-36 RL-48 04027 FSMAN2-48 04032 FSMAN4-1/2-48 RL-60 04028 FSMAN2-60 04033 FSMAN4-1/2-60
Gift wrapping:
Options available

ROLLER LACER 48 In, RL-48#03372/10NOTE: This lacer requires a new, 3-Layer Face Strip.
Previous 2-Layer Face Strips will not function properly in
this lacer. Refer to below chart for ordering information:
#36 Face Strip
#1 Face Strip
Microlacer
04019 FSMAN36-MICRO 04014
FSMAN1-MICRO
RL-24
04020
FSMAN36-24
04015
FSMAN1-24
RL-36
04021
FSMAN36-36
04016
FSMAN1-36
RL-48
04022
FSMAN36-48
04017
FSMAN1-48
RL-60
04023
FSMAN36-60
04018
FSMAN1-60
#2-4 Face Strip
#4-1/2-7 Face Strip
Microlacer
04024
FSMAN2-MICRO
04029 FSMAN4-1/2-MICRO
RL-24
04025
FSMAN2-24
04030
FSMAN4-1/2-24
RL-36
04026
FSMAN2-36
04031
FSMAN4-1/2-36
RL-48
04027
FSMAN2-48
04032
FSMAN4-1/2-48
RL-60
04028
FSMAN2-60
04033
FSMAN4-1/2-60Roller Lacer®
Clipper
SERIAL
NUMBER
RL-84410
1854 Northridge Drive, NW
Walker, MI 49544 USA
www.flexco.com
FLEXCO
Operating Instructions:
1. Select proper size hook and insert into face strip. Insert
lacer pin. Remove carding paper if it covers hook
points. If carding paper does not cover hook points,
remove after hooks have been installed.
2. Insert belt into lacer between hook points. Secure belt
by closing belt clamps.
3. Open rollers by turning adjusting knob clockwise.
Position lacer head over hooks and close rollers until
rollers touch hooks. Move lacer head to either belt
edge. Turn adjusting knob another 1-1/2 turns
counterclockwise.
4. Using drive handles, move lacer head across belt
width, embedding hooks. Close adjusting knob 1/2 tum
for each pass, until hooks are properly installed: 1) 1/2
to 1/3 of the wire diameter is embedded into belt cover;
2) hook points break belt surface.
5. Remove lacer pin. Loosen belt clamps and remove belt.To Secure Face Strip
Loosen hex screw to rotate
Retaining Latch for Face Strip
removal and insertion.
HRoller Lacer
MIMRER
RL-84410
FLEXEDStorage Clip

Product attributes

Brand
SPARKS
crn
1149483
mpn
1149483
