Product attributes
Brand
AB ELECTRICAL
crn
1606-XLE480E
mpn
-
POWER SUPPLY - 120VAC INPUT, 24VDC OUTPUT, 20A(W)
S
37U 7M
05 ℃
S
37U 7MA.B
Allen-Bradley
CAT 1606-XLE480EP SER B
Power Supply 1-Phase, 24V, 20A, 480W
Installation by professional personnel only
Input:
AC 100-240V, 6.3-2.7A, 50-60Hz
DC 110-150V, 5.7-4.2A
Output:
DC 24-28V, 24-20.6A (below +45°℃)
DC 24-28V, 20-17.1A (at +60℃)
DC 24-28V, 15-13A (at +70℃)
Derate linearly between +45℃ and +70℃
Operational temperature range: - 25°C to +70℃
WARNING
READ 10005140919 INSTALLATION MANUAL
FOR USE IN A CONTROLLED ENVIRONMENT
OPERATE VOLTAGE ADJUSTMENT IN NON-
HAZARDOUS AREAS ONLY
41BM
C
US LISTED
IND. CONT. EQ. FOR HAZ. LOC.
Class I Div 2 T4, Groups: A, B, C, D
For AC input voltages only
OG
POUR UTILISATION EN ENVIRONNEMENT
CONTRÔLÉ
UTILISER LE RÉGLAGE DE TENSION
UNIQUEMENT EN ZONES NON EXPLOSIBLES
Rockwell Automation
1201 S 2nd St, Milwaukee, WI 53204, USA
www.ab.com, Product of China
IM-426.919.38B
PN-558268
DC OK
Contact
Parallel Use
E
Link pins for
parallel use
CE EK
CCC
18WM
IND. CONT. EQ.
US LISTED
IECEx: EPS 19.0103X
ATEX: EPS 17 ATEX 1 089 X
Il 3G Ex ec nC IIC T4 Gc
ATTENTION
LIRE LE MANUEL D'INSTALLATION DE
10005140919
EAC
25
S/N 30036930
Aug 25CEW-426
S/N 30 036 930 426 .. 00 G+
+
OUTPUT 24V DC 20A
24-28V
DC OK
PARALLEL
USE
13
14
A-B
1606-XLE480EP
POWER SUPPLY
- INPUT 100-240V AC-
N
L+
+
OUTPUT 24V DC 20A
24-28V
DC OK
PARALLEL
USE
13
14
A-B
1606-XLE480EP
POWER SUPPLY
- INPUT 100-240V AC-
N

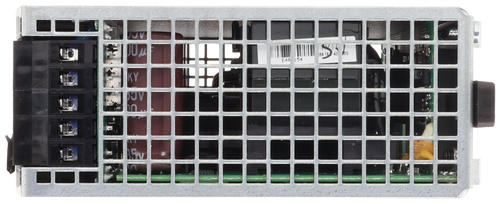

LAC
Y
E
E48 154
