POWER SUPPLY, 120V, 24V, 20A - 100500401

PN:
100500401
CRN:
1606-XLS480E
MPN:
-
POWER SUPPLY, 120V, 24V, 20A - 100500401
POWER SUPPLY, 120V, 24V, 20A - 100500401
EN 362.992.03-500 1000000000000000000000 BO S/N 24 508 892 362 .. 00 D
DC ok + + DC/24V / 20A 24- 28V DC ok OVL AB Allen-Bradley QUALITY 1606-XLS POWER SUPPLY 1606-XLS480E UL 18WM IND.CONT.EQ. C US LISTED CE Input AC 100-240V N L
POWER SUPPLY, 120V, 24V, 20A - 100500401

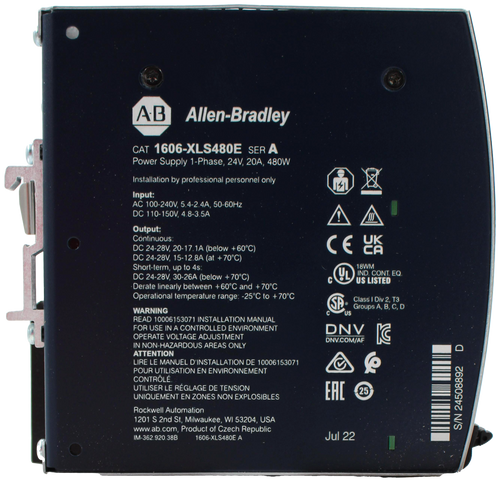

A.B Allen-Bradley CAT 1606-XLS480E SER A Power Supply 1-Phase, 24V, 20A, 480W Installation by professional personnel only Input: AC 100-240V, 5.4-2.4A, 50-60Hz DC 110-150V, 4.8-3.5A Output: Continuous: CE EA DC 24-28V, 20-17.1A (below +60℃) DC 24-28V, 15-12.8A (at +70℃) Short-term, up to 4s: UL 18WM DC 24-28V, 30-26A (below +70℃) IND. CONT. EQ Derate linearly between + 60℃ and +70℃ US LISTED Operational temperature range: - 25℃ to +70℃ SP Class I Div 2, T3 WARNING Groups A, B, C, D US READ 10006153071 INSTALLATION MANUAL FOR USE IN A CONTROLLED ENVIRONMENT DNV KC OPERATE VOLTAGE ADJUSTMENT IN NON-HAZARDOUS AREAS ONLY DNV.COM/AF ATTENTION D LIRE LE MANUEL D'INSTALLATION DE 10006153071 POUR UTILISATION EN ENVIRONNEMENT CONTRÔLÉ. UTILISER LE RÉGLAGE DE TENSION EAC 25 UNIQUEMENT EN ZONES NON EXPLOSIBLES Rockwell Automation 1201 S 2nd St, Milwaukee, WI 53204, USA www.ab.com, Product of Czech Republic S/N 24508892 IM-362.920.38B 1606-XLS480E A Jul 22
Gift wrapping:
Options available

POWER SUPPLY, 120V, 24V, 20AA.B
Allen-Bradley
CAT 1606-XLS480E SER A
Power Supply 1-Phase, 24V, 20A, 480W
Installation by professional personnel only
Input:
AC 100-240V, 5.4-2.4A, 50-60Hz
DC 110-150V, 4.8-3.5A
Output:
Continuous:
CE EA
DC 24-28V, 20-17.1A (below +60℃)
DC 24-28V, 15-12.8A (at +70℃)
Short-term, up to 4s:
UL
18WM
DC 24-28V, 30-26A (below +70℃)
IND. CONT. EQ
Derate linearly between + 60℃ and +70℃
US LISTED
Operational temperature range: - 25℃ to +70℃
SP
Class I Div 2, T3
WARNING
Groups A, B, C, D
US
READ 10006153071 INSTALLATION MANUAL
FOR USE IN A CONTROLLED ENVIRONMENT
DNV
KC
OPERATE VOLTAGE ADJUSTMENT
IN NON-HAZARDOUS AREAS ONLY
DNV.COM/AF
ATTENTION
D
LIRE LE MANUEL D'INSTALLATION DE 10006153071
POUR UTILISATION EN ENVIRONNEMENT
CONTRÔLÉ.
UTILISER LE RÉGLAGE DE TENSION
EAC
25
UNIQUEMENT EN ZONES NON EXPLOSIBLES
Rockwell Automation
1201 S 2nd St, Milwaukee, WI 53204, USA
www.ab.com, Product of Czech Republic
S/N 24508892
IM-362.920.38B
1606-XLS480E A
Jul 22DC ok
+ +
DC/24V / 20A
24-
28V
DC ok
OVL
AB
Allen-Bradley
QUALITY
1606-XLS
POWER SUPPLY
1606-XLS480E
UL
18WM
IND.CONT.EQ.
C
US LISTED
CE
Input
AC 100-240V
N LEN 362.992.03-500
1000000000000000000000
BO
S/N 24 508 892 362 .. 00 D

Product attributes

crn
1606-XLS480E
mpn
-
