  • AC DRIVE 2HP - 100832574

ALLEN-BRADLEY

AC DRIVE 2HP - 100832574

PN:
100832574
CRN:
22A-D4P0N104
MPN:
22A-D4P0N104

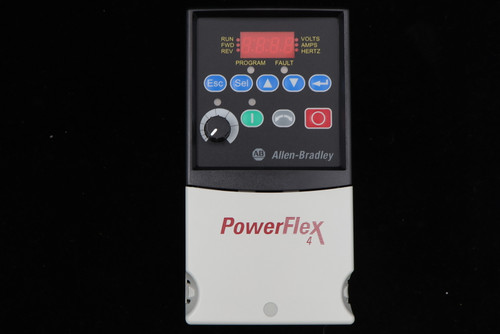

RUN VOLTS FWD AMPS REV . HERTZ PROGRAM FAULT Esc Sel O AB Allen-Bradley PowerFlex
RUN VOLTS FWD AMPS REV . HERTZ PROGRAM FAULT Esc Sel O AB Allen-Bradley PowerFlex
K2 R3 11 12 13 14 15 16 MIT2 W T3 DANGER of electrical shoes.wells minutes after removing power re servicing. ni
A.B "SN AD4PONOT23400004" CAT SER FW 22A-D4PON104 A 7.02 IP20 / UL Open-Type with top cover removed (rated red (rated -10℃ to 50℃ Ambient) 1 / UL Type 1 with top cover and optional conduit box kit installed (rated-10℃ to 40℃ Ambient). Refer to user manual. Motor Rating: 1.5kW/2.0HP c UL US Input:3 Phase, 380-480V. 48-63 Hz AC Voltage Range:342-528 LISTED IND. CONT. . EO. Amps: 6.7 E59272 Output: 3 Phase, 0-240 Hz CEFAL AC Voltage Range:0-460 Continuous Amps :4.0 60 Sec Ovid Amps:6.0 SHORT CIRCUIT CURRENT: 100KA POWER TERMINAL WIRE: Use 75ºC Cu Wire 3.3 mm* - 0.8 mm3 (12 - 18 AWG) IE2 Torque 1.96 Nm (17.4 in .- lbs.) 41.8% 生产日期 22A-D4PON104 A 1041585 PRODUCT OF TAIWAN 2023/10/04 Rockwell Automation, 1201 S 2nd St. Milwaukee, WI 63204, USA
